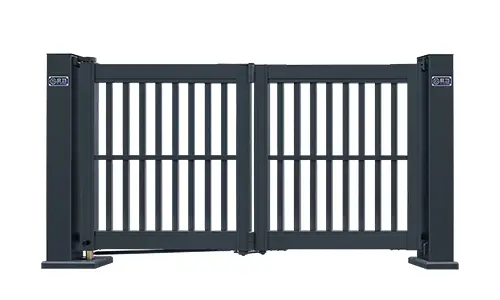

Venetian Blinds Bi-folding Trackless Gate

Remote control
No wheels and no tracks
Adaptable to any terrain
Precise movement and precise limit

Contact Now

Product Specifications

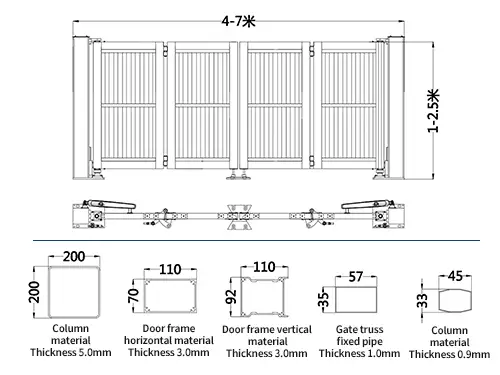

  • The limit length of the gate is 4.5 meters for single opening and 9 meters for double opening. The height can be 1-2.2 meters. The gate opening/closing time is about 12 seconds. Motor power: 100W;
  • The pillars of the gate body are made of aluminum profiles, the fasteners are made of high-quality steel, and the structural parts are made of high-quality stainless steel. The surface is galvanized for anti-corrosion treatment and then painted at high temperature to have strong rust resistance;
  • The gate frame and inner vertical materials of the gate body are made of high-quality aluminum alloy profiles. There are no welding points. The overall shape is beautiful and elegant, strong and durable, and not easy to rust;
  •  The gate body is suspended in the air and does not need to rely on wheels or rails to run, and is not restricted by gateways. (e.g. railways, ice and snow accumulation, underground cables, slopes, etc.);
  • The gate body folds and opens, and the gate opens and folds at the same time, with a small operating stroke and a small area of operation;
  • The gate motor is equipped with the function of stopping when encountering obstacles or returning when encountering obstacles. If you accidentally hit an obstacle, the impact of the low-power motor on the gate body and the person or object being hit will be relatively small;
  • Switch limit: Electronic learning limit is adopted, making learning easier and more convenient;
  • Confidentiality performance: It adopts rolling code controller, no duplicate code, anti-theft code, good confidentiality performance, safe and reliable;
  • Single-arm adjustable mode: It can realize the opening and closing function of a single gate, or the function of opening and closing two gates at the same time;
  • Paint process: Use Dutch Aknobel electrostatic powder spraying;
  • The gate motor is equipped with a manual clutch. When there is a power outage or maintenance, the manual clutch key can be used to open the clutch device and manually push the gate to operate;
  • Can be used with smart devices: access control (fingerprint password, fingerprint access control, password card recognition, face recognition, Bluetooth recognition, mobile APP, etc.
  • The gate body is 130mm off the ground. Anti-climbing serrations can be added at the top and bottom of the gate body. Waterproof grade: IP44. Gate row weight: about 19KG/meter. Column weight: about 30KG/meter.
