Product Introduction

The road block machine has an overall carbon steel structure. It is used in prisons, military units, airports, oil fields, chemical plants, bank vaults and other places that require extremely high levels of on-site anti-collision equipment. The basic design has a maximum impact resistance of 500,000 kcal. It is equivalent to blocking the impact of a 10-ton truck traveling at 50 kilometers per hour. Can completely block the impact of a 7.5-ton truck traveling at 80 kilometers per hour.

Product Specifications

  • System control: electro-hydraulic optional built-in hydraulic station within 3 meters
  • Container trucks over 100 tons can pass through pressure.
  •  Rising time: ≤3S (1.5~5S adjustable)
  • Working temperature: -35C~75C (suitable)
  • Material: A3 carbon steel anti-rust primer + fluorocarbon topcoat
  • Weight: about 400kg per meter
  • Body specifications: 800 long * 500 wide * 910mm high
  • Motor: 3HP*4P three-phase 380V (industrial grade)
  • Oil pump (industrial grade)
  • Heavy duty hydraulic cylinder:HOB63-200CA+1
  • Double-action double oil circuit manual pump 2, 3ML/time (industrial grade)
  •  Fuel tank volume: 60 liters
  • Hydraulic pipe: PT international standard interface, 1/2 double-layer steel wire
  • Power supply: three-phase 380 (control voltage 24V)
  • System power W: 37K
  • Falling time: ≤2S (1~5S adjustable)
  • Material thickness: 16, 20, 25mm (optional)
  • Color: Customizable color
  • Protection level: IP65

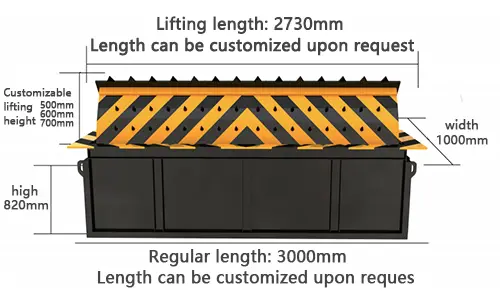

  • Regular size:3000*1000*820mm
  • Control module: SCM customizable PLC
  • Original chips imported from the United States
  • Power switch (industrial grade)
  • Control solenoid valve (industrial grade)
  • Power supply industrial grade (-28”C -85C)
  • The control range of the remote control is within 30M
  • Customizable LED: Display text address phone
  • Lifting height: 500mm (600/700mm can be customized)
  • High pressure pipe; (industrial grade)
