Parking-Lot-Ticket-Machine
X
Parking-Lot-Ticket-Machine

Parking Payment Kiosks

Parking Payment Kiosks
Display screen:One line display
QR code:Scan ticket
Interface:TCP/IP
Place of Origin:Foshan,China

Categories:

Contact Now

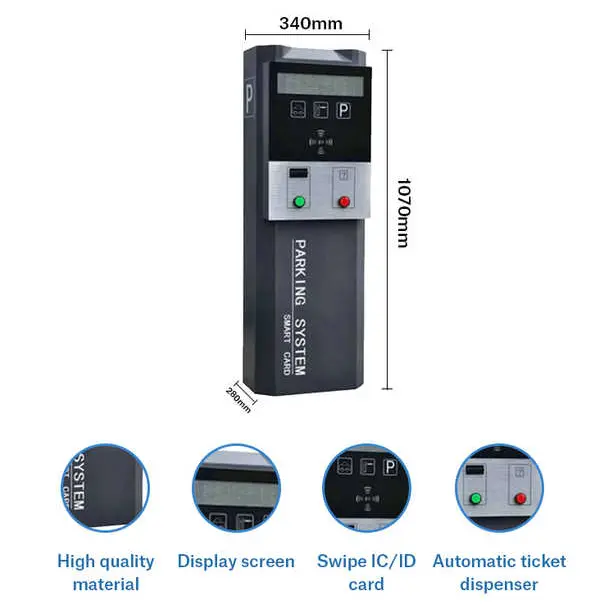

Smart Parking Payment Kiosk: Core Functionality Specifications

1. Modular Hardware Configuration

  • Main Processing Module: Integrates a ticket printer and barcode scanner (dual top/bottom readers), supporting 1D/2D barcode recognition.
  • Feeding Module: Dual feeder design compatible with roll-fed or fanfold ticket paper (standard 80mm width).
  • Structural Features: Aluminum alloy housing with tool-free snap-fit module connections.

2. Core Operational Workflow

  • Entry Ticket Issuance: Automatically prints timestamped barcode tickets (or dispenses RFID cards) upon vehicle detection, with synchronized gate arm activation.
  • Exit Validation: Users insert tickets into the scan port for barcode verification and gate release.
  • Error Handling: Manual override via physical maintenance key for damaged tickets.

3. Maintenance & Management

  • Status Monitoring: LED indicators for paper low/jam, network disconnection, and other basic faults.
  • Hardware Serviceability: Quick-release cutter and sensor components (<3-minute replacement).
  • Environmental Compliance: Operational range -20℃~60℃ with IP54 dust/water resistance.

4. Data Logging

  • Local Storage: Records 50,000+ entries of timestamps, ticket IDs, and device status logs.
  • Data Export: Outputs ASCII-formatted logs via RS232 serial port.

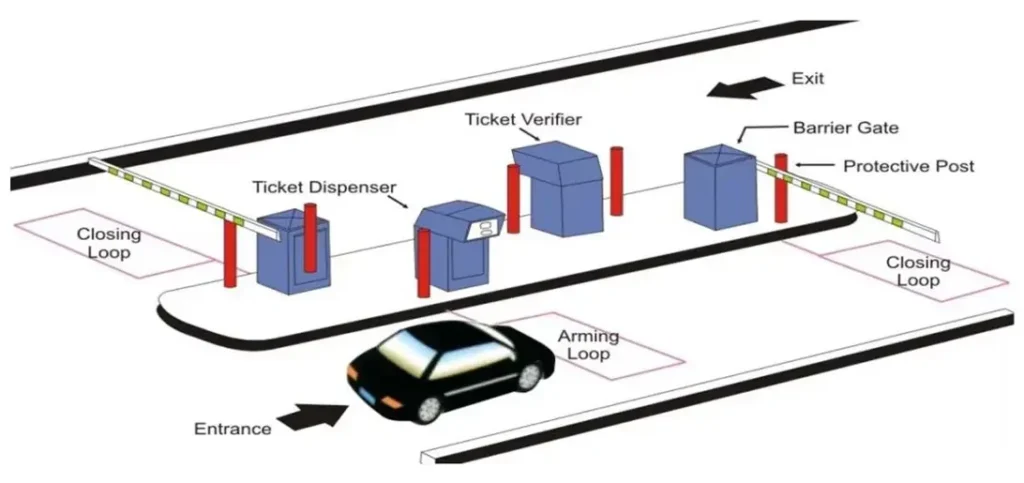

Parking Ticket Management System

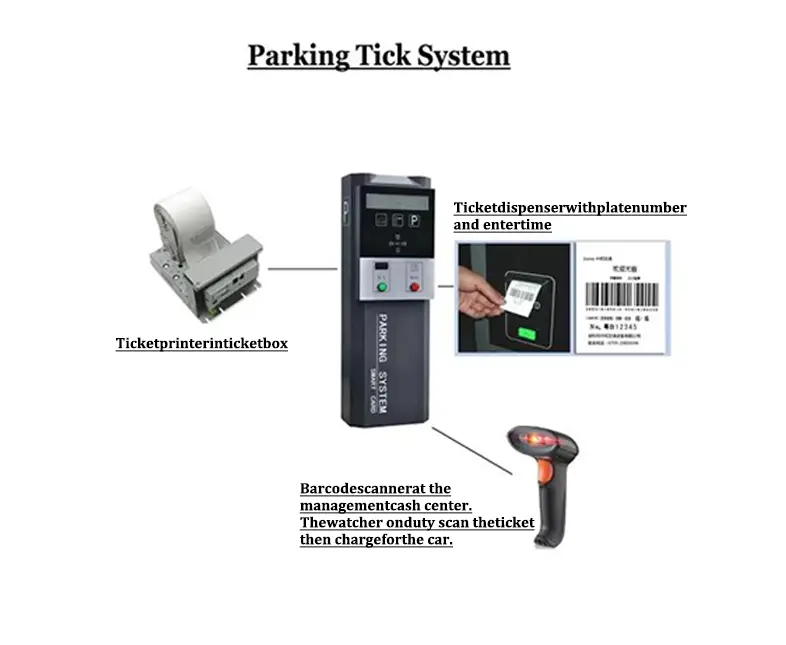

This system streamlines parking operations: At entry, a thermal printer issues barcoded tickets with license plate numbers and exact entry times. Staff scans tickets at exit using handheld devices to calculate fees manually. Gates lift post-payment, updating space availability. Designed for small/medium lots, it balances automation (barcode security) and manual oversight (e.g., lost ticket handling), ensuring accuracy while keeping upgrade costs low.
