Hydraulic Road Blocker

Categories:

Contact Now

Product Introduction

The road block machine has an overall carbon steel structure. It is used in prisons, military units, airports, oil fields, chemical plants, bank vaults and other places that require extremely high levels of on-site anti-collision equipment. The basic design has a maximum impact resistance of 500,000 kcal. It is equivalent to blocking the impact of a 10-ton truck traveling at 50 kilometers per hour. Can completely block the impact of a 7.5-ton truck traveling at 80 kilometers per hour.

Product Specifications

  • System control: external hydraulic station (built-in hydraulic station can be selected within 3 meters)
  • Top plate steel plate thickness: 16MM (can be customized)
  •  Vertical height: 500mm (can be customized)
  • Lifting time: rising 2S> falling 1.5S> (adjustable)

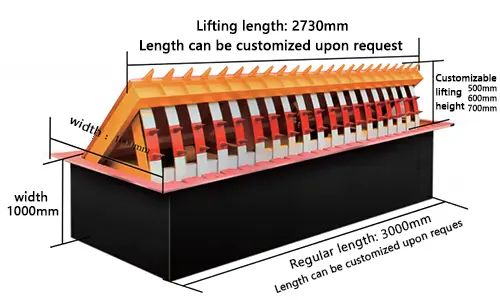

  • Length, width and height: 3000*1000*820mm (can be customized)
  • Effective interception width: 2760mm (can be customized)
  • Working temperature: -35°C~75°C (suitable)
  • Traffic pressure: can pass 100T container truck
  • Motor: 3HP*4HP three-phase 380V (industrial grade)
  • Oil pump: (industrial grade)
  • Lift solenoid valve (industrial grade)
  • Heavy duty hydraulic cylinder:HOB63-200CA+I
  • Double-action double-oil manual pump 2, 3ML/time (process grade)
  • Hydraulic pipe: PT international standard interface, 1/2 double-layer steel wire
  • Color: red, white, yellow (can be customized)
  •  Anti-collision level:>850000 Joules (can be customized)
  • 1000 tons instant impact force
  •  Control mode: remote control, manual, license plate recognition, access control linkage or remote control via mobile APP
  • Protection level: IP65
  • Regular size:3000*1000*820
  • Control module: SCM customizable PLC
  • Original chips imported from the United States
  • Power switch (industrial grade)
  • Control solenoid valve (industrial grade)
  • Power supply industrial grade (-28C -85C)
  • Remote control range within 50M
  • Lifting height:500/600/700
  • Fuel tank volume: 60L
