Boom barrier gate Introduction

Boom barrier gate system is specially used to limit the passage of motor vehicles on the road entrance management equipment, is widely used in highway toll stations, parking lots, residential, enterprises and institutions at the gate, to manage the access of vehicles. The electric boom barrier gate can be used to realize the lifting rod by remote control alone, or it can be automatically managed by the parking lot management system(i.e. ANRP).Boom arrier gates cooperate with license plate recognition system to realize smart parking.

Product Specifications

  • Adopt frequency conversion motor + frequency conversion control system, soft start, soft stop, safe and stable operation;
  • Center-mounted structure, the chassis adopts a symmetrical design, regardless of the left and right directions, reducing inventory pressure;
  • The most stable non-constant speed running mechanism is adopted to make the brake lever start slowly and run quickly, and the slow stop adopts high-load and heavy-duty load-bearing bearings to make the movement part more stable;
  • It is suitable for entrances and exits with an average daily traffic flow of less than 500 times.
  • Brake lever specifications: Main pole: 150*50*1.8mm
  • Sub rod: 85*45 *1.0mm
  • Vertical bar: 55*15*0.55mm
  • Remote control distance: 35~50M

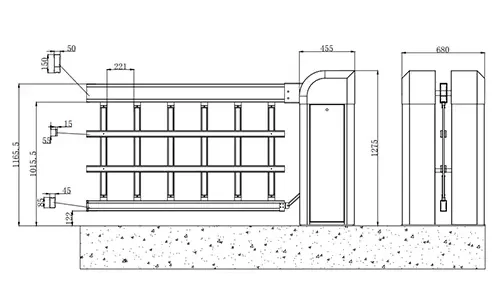

  • Dimensions (mm): 445x680x1275(LxWxH)
  • Working principle: the turbine worm rotates
  • Working voltage: AC220V ± 10%
  • Motor input voltage: DC24V DC variable frequency motor motor
  • Power: 200W
  • Rated current: 6A
  • Motor rated speed: 2200r/min
  • Motor insulation class: F
  • Protection class: IPX4
  • Working humidity: <80%, non-condensing standard
  • Optional chassis material: high-strength steel plate with a thickness of 2.0mm
  • Gate length: 2-6 meters optional
  • Running time: 1.5S-10S (speed adjustable)
