Flap Barrier Turnstile Gate

Highly Durable Flap Barrier Speed Gates
Turnstile gate with card reader
Low Maintenance Costs
Switchable Reader Panel
PGIC Controller
LED Indicator
Installation Place for Facial Recognition A&C Terminals
Infrared Sensors
Usage scenarios: Pedestrian entrances and exits in schools, scenic spots, etc.

Categories:

Contact Now

Turnstile Gate Introduction

Turnstile gate is one of the effective ways to control pedestrian traffic. It is an access control system that pedestrians can pass by using card swiping or face recognition, which will keep unsafe factors out and solve security problems.You can also choose whether it is a one way turnstile gate or a two-way turnstile.

There are many types of Turnstile Gates: Such as tripod turnstile gate, swing gate, wing gate, speed gate, flap barrier turnstile, etc., according to different characteristics, suitable for different occasions.

Product Specifications

  • Compatible with IC/ID, magnetic card, barcode card, anti-static and other control equipment;
  • The brake lever operates smoothly, with low noise and quick and reliable unlocking;
  • With power-off emergency function, the power-off gate will automatically open;
  • Protection level: IPX4;
  • Infrared anti-pinch;
  • Opening and closing delay;
  • Illegal warning: do not authorize forced entry alarm, tailgating alarm, reverse intrusion alarm;
  • Anti-reverse intrusion;
  • Chassis material: 304 stainless steel chassis, upper cover 1.2mm, chassis 1.0mm;

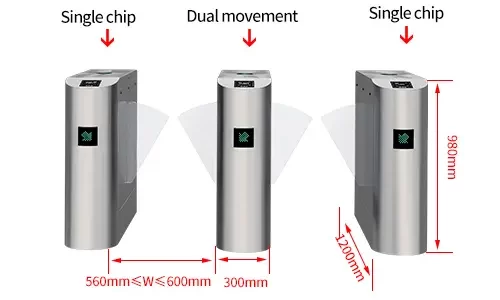

  • Dimensions (mm): 1200*300*980mm;
  • Material thickness: 1.2mm for the upper cover, 1.0mm for the chassis;
  • Passage width: 560mm≤W≤600mm;
  • Working voltage: AC220V±10%;
  • Motor input voltage: DC24V;
  • Motor power: 40W;
  • Opening speed: 1-2 seconds;
  • Temperature: -20°C-60°C;
  • Infrared anti-pinch: 4 pairs of infrared
