ANPR And Straight Bar Barrier Gate

Vehicle entrance control gate barrie
Compact design
Switchable Reader Panel
Simple installation
Long life cycle
MOQ: 2 sets

Categories:

Contact Now

Boom barrier gate Introduction

Boom barrier gate system is specially used to limit the passage of motor vehicles on the road entrance management equipment, is widely used in highway toll stations, parking lots, residential, enterprises and institutions at the gate, to manage the access of vehicles. The electric boom barrier gate can be used to realize the lifting rod by remote control alone, or it can be automatically managed by the parking lot management system(i.e. ANRP).Boom arrier gates cooperate with license plate recognition system to realize smart parking.

Product Specifications


  • Adopts wireless communication control mode, four-digit digital display, and the program supports users to modify and save operating parameters.
  • It has open, close, stop wire control interface, infrared ray shooting, ground sensing interface, landing lever in-position output and other interfaces.
  • The remote control code adopts the learning code method, and the receiving module adopts the superheterodyne receiving building type.
  • It integrates license plate recognition, multiple payment methods, voice prompts, and other functions into one

     Barrier Gate:

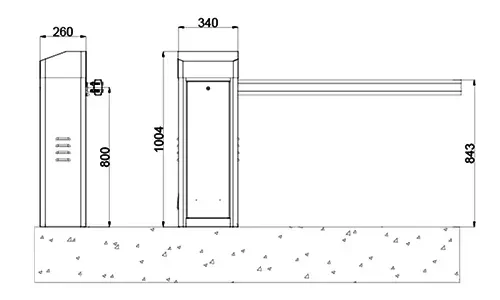

  • Dimensions (mm): 340X260X1000 (LXWXH)
  • Working principle: full wheel and full rod rotation
  • Working voltage: AC220V ± 10%
  • Small motor input voltage: AC220V
  • Motor power: 90W
  • Competitive working temperature: -25″C-70C
  • Working humidity: ≤90%, no condensation (at room temperature)
  • Noise requirement: E65 decibels
  • Shell protection grade: IPX4
  • Standard Color: Yellow/Grey
  • Chassis material: The main body of the fuselage is made of high-strength steel plate with a thickness of 1.2mm
  • Brake lever length: 3-6 meters optional
  • Starting time: 3S/6S
  • Reference gate rod specifications: (cross-sectional size): 86mmX44mm

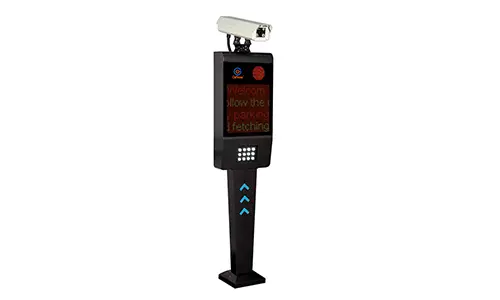

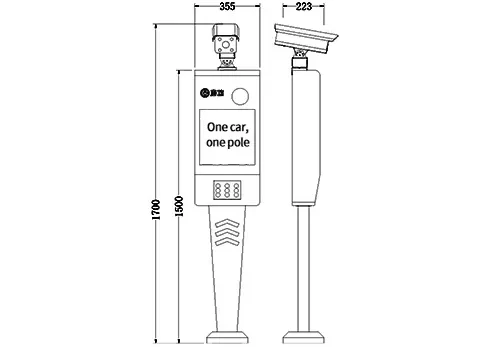

     ANPR:

  • Adapt To Vehicle Speed:≤35km/h
  • Fill Light:<30lux
  • Recognition Distance:3-10meters
  • Recognition Rate:98%
  • Recognition Speed:<30km/h
  • Display Screen:Four lines display
  • Camera Lens:4-12MM
  • Capture Distance:4M
  • Camera:1/3CMOS   2Mpixel
  • Record:DATABASE
  • Management:PARKING SOFTWARE
  • Language:English Spanish Russian Japanese Korean Thai Portuguese
  • Warranty:12 month
  • MOQ:1 set
