ANPR And Fence Barrier Gate

Vehicle entrance control gate barrie
Compact design
Switchable Reader Panel
Simple installation
Long life cycle
MOQ: 2 sets

Categories:

Contact Now

Product Specifications

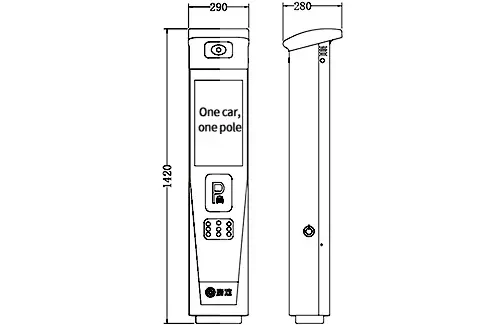

    ANPR:

  • It integrates license plate recognition;
  • AI big data analysis technology;
  • LCD high-definition screen, advertisement playback, voice call, voice prompt and other functions in one;
  • 3 million star-level high-definition cameras, the recognition accuracy is as high as 99.7%;
  • Anti-counterfeiting detection: Effectively shield mobile phone license plates and paper license plates to prevent fee evasion;
  • Support remote operation, which can meet the needs of lightweight unattended.

     ANPR:

  • Working voltage: AC220V10%
  • Product power: 65W
  • Working temperature: -25°C~70C
  • Working humidity: ≤95%, no condensation (at room temperature)
  • Shell protection grade: IPX4
  • License plate recognition rate: >99.7% (all-weather)
  • Communication method: TCP/IP, 4G, IO
  • Display: 18.5 inches LCD screen
  • Fill light power: 9W
  • Fill light on/off control: photosensitive control
  • Camera pixel: 3 million starlight level

  Barrier:

  • Adopts wireless communication control mode, four-digit digital display, and the program supports users to modify and save operating parameters.
  • It has open, close, stop wire control interface, infrared ray shooting, ground sensing interface, landing lever in-position output and other interfaces.
  • The remote control code adopts the learning code method, and the receiving module adopts the superheterodyne receiving building type.

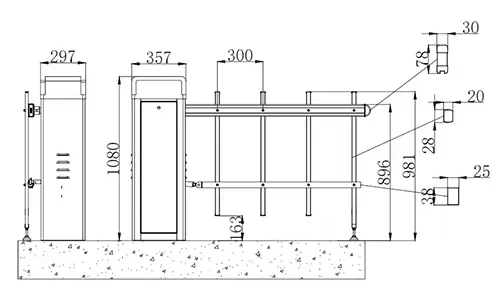

  • Dimensions (mm): 340X260X1000 (LXWXH)
  • Working principle: the turbine worm rotates
  • Working voltage: AC220V ± 1096
  • Competing motor input voltage: AC220V
  • Motor power: 120W
Barrier:

  • Working temperature: -25°C-70C
  • Working humidity: ≤90%, no condensation (at room temperature)
  • Noise requirement: s65 decibels
  • Refer to the enclosure protection level: IPX4
  • Standard Color: Yellow/Grey
  • Chassis material: The main body of the fuselage is made of high-strength steel plate with a thickness of 1.2mm
  • Brake lever length: 3-6 meters optional
  • Starting time: 3S/6S
  • Asking rod specifications: large rod (cross-sectional size): 100mmx45mm
  • Small rod (cross-sectional size): 50mmx16mm
  • Communication distance: 35M
